Globe Control valve
PCV Globe Valves—available in both top-guided and cage-guided designs—offer exceptional versatility for general-purpose flow control across petrochemical and refinery applications. Built with a modular structure, they meet international standards such as ANSI, API, ASME, ISO, DIN, and JIS.

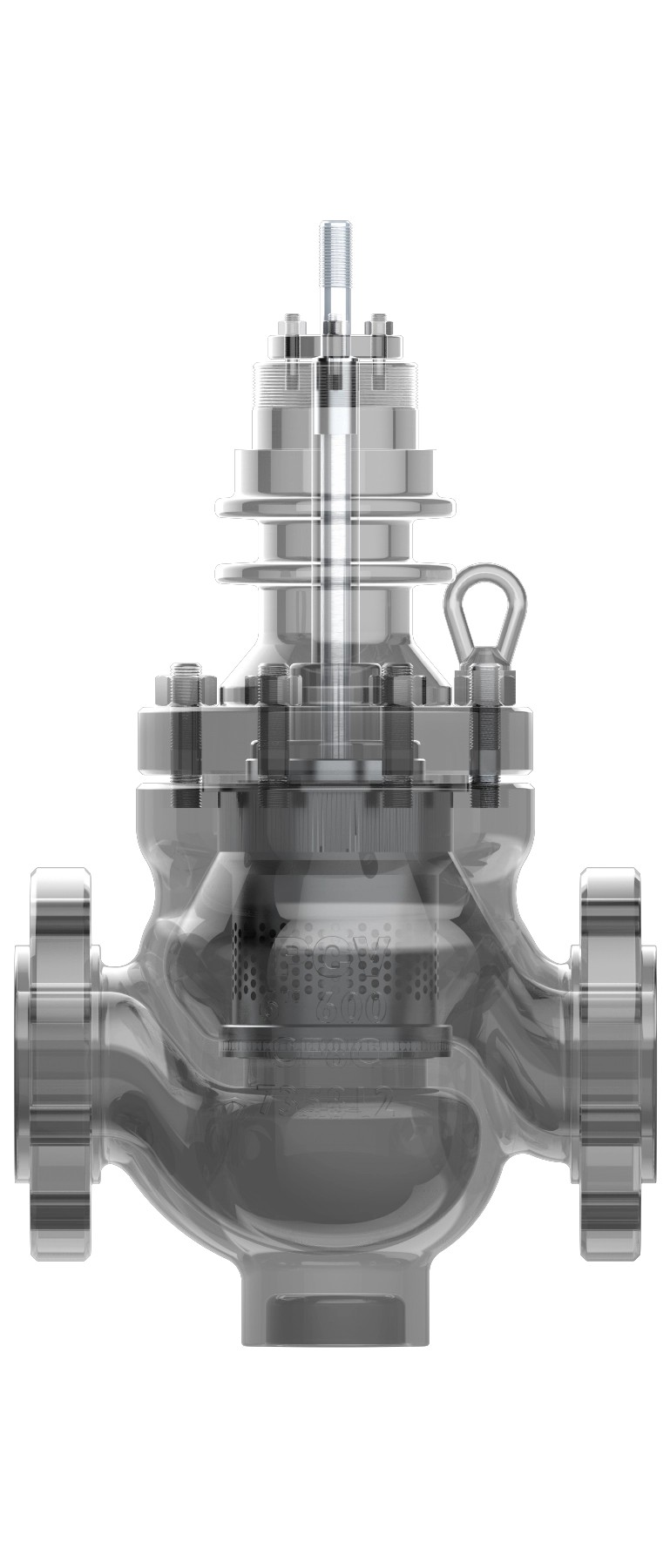

Each valve features a straight-body design with three flanged ends and a single-seat configuration. The cage-guided balanced plug ensures enhanced performance, especially in high-pressure and high-temperature service. A wide range of sizes, pressure classes, and material grades are available to match the specific requirements of various process fluids.
Flow control is precisely managed via a CNC-drilled cage, which acts as a full-length guide for the plug during its travel. This ensures stable, accurate, and responsive regulation under all operating conditions.
Engineered for durability and efficiency, PCV Globe Valves provide precise modulation across a wide flow range. The plug design is optimized to offer excellent rangeability, reduced minimum controllable flow, and minimized erosion, making them a reliable choice for critical flow control needs.

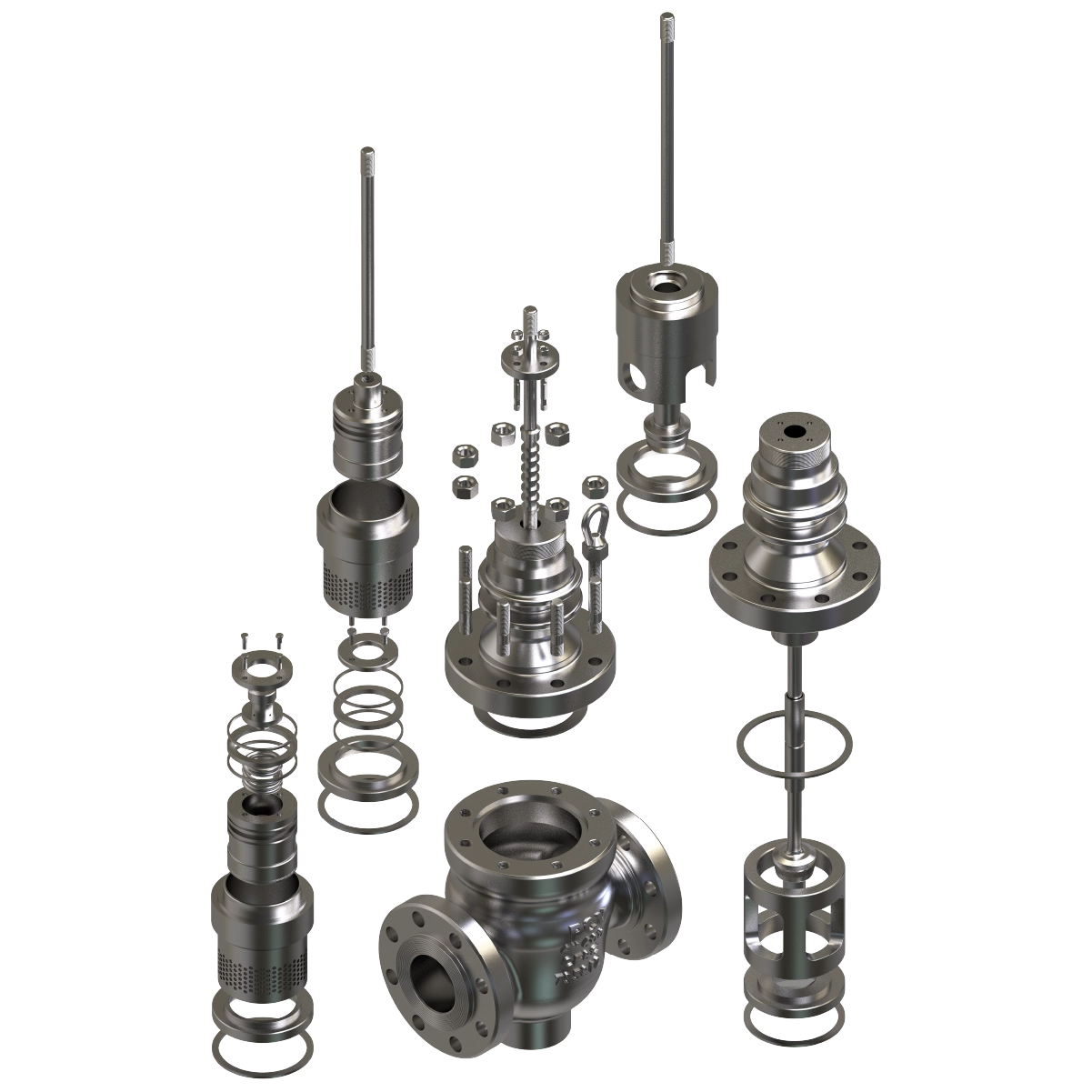

Specialized Trims for Demanding Applications
PCV Globe Valves can be equipped with replaceable specialized trims tailored for high-performance service conditions, providing flexibility for adaptation to high-temperature and critical process environments.
Available trim options include:
Standard Trim – For general-purpose flow control
Low Noise Trim – Designed to minimize aerodynamic noise in high-pressure gas service
Double Case Trim – Engineered for enhanced pressure recovery and protection against cavitation in severe liquid service
These configurations are ideal for high differential pressure applications, including gaseous fluids and cavitating liquid services, where precise control and operational stability are essential.
Product Specifications
Size Range:
DN 1” to DN 24”
Pressure Ratings:
ANSI Class 150 up to ANSI Class 2500 (as per ASME B16.34)
Operating Temperature Range:
Standard Service: -55 °C to 550 °C
Cryogenic Service: Down to -196 °C with extended bonnet and stem, designed per BS 6364 / MSS SP-134 standards
Design Features:
Quick-Changeable Trim: Optimized to handle maximum allowable working temperatures with ease of maintenance
High Cv Values: Engineered valve body shape ensures superior flow characteristics
High Rangeability: Wide control range for precision in demanding applications
Sealing Performance:
Class V leakage as per IEC 60534-4 (up to 550 °C)
Optional soft seat insert for Class VI tight shut-off
Plug Design:
Unbalanced contoured plug available up to DN 8”
Suitable for dirty fluid services
Bonnet Options:
Extended and finned bonnets available for both cryogenic and high-temperature service

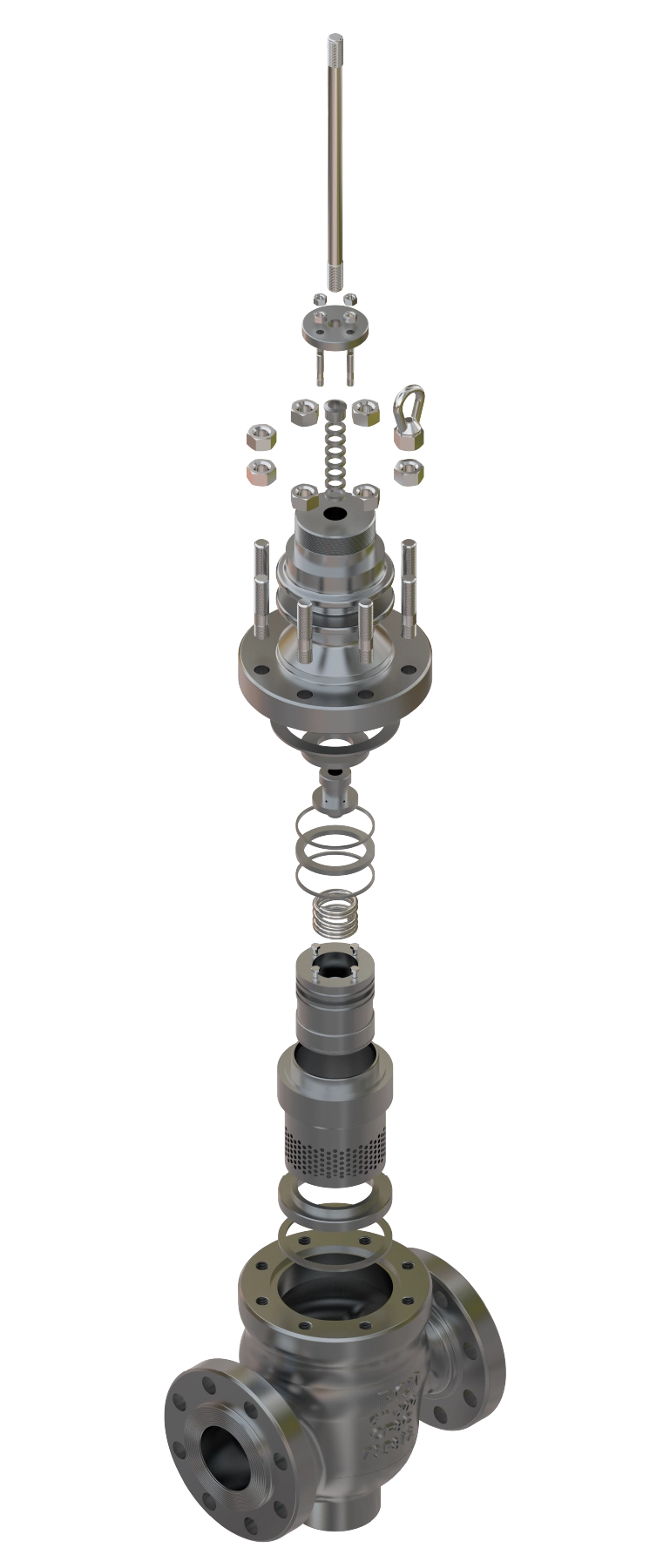

General Construction information
Body type is globe, straightway single port.
Angle body version series is available on request and is Constructed either cast or forged.
Forged material is available for small sizes only due to forging capability limitations
A wide variety of materials (from ASME/ASTM Standards) is available for Body, Bonnet and trim according to PCV STD and experiences.
Other special and uncommon materials are available on request.
Contoured Plug, Size : DN 0.5″ up to DN 8”
Contoured Integral Plug, Size : Guided Stem, DN 0.5” up to DN 8”
Cage Guided Plug , Size DN 0.75” up to DN 24”
Cage Balanced Plug with Pilot , Size : DN 2” up to DN 24”
- ASME B16.5 Flanged (RF,RTJ)
- BW Ends as per ASME B16.25
- SW or NPT up to NPS 2” as per ASEM B16.11
available as per ASME B16.34
- FTC (Flow to Close)
- FTO (Flow under the plug)
It can be linear or equal percentage.
The Bonnet of CVs can be either of mixing of the following:
- Extended (partially)
- Finned type
- Equipped With bellows Seal Stem.
- Extension bonnet for Cryogenic service (<-54 °C) on request as per BS6364 /MSS SP134 and are flanged type and is made as cast or forged from the variable Grades of ASTM/ASME Material same as Body.
Plug will be either full or reduced ports to achieve different CVs.
- Contoured
- Balanced
- Unbalanced
- Microflow
Plug material is variable considering the design and process requirements.
The seat is mounted freely and fitted into the body of valves without any fasteners, threading or force. It will be centred in the cage main alignment with the plug , body, and seat.
Material of the seat are also variable considering the design and process requirements.
Type of cage: Cages usually be generally either Single or Double.
Material: Material of case are also variable considering the design and process requirements.
One of the following but not limited to:
- Pure flexible graphite packing (max 400 °C in presence of oxidizing fluids)
- RPTFE packing up to 250°C
- Pure PTFE packing up to 200°C
Rating Range
